The new IVT 3 Series offers the highest flexibility in our portfolio
The IVT 3 Series is a compact high precision current measurement device, which is built on a platform concept where functional components can be added to adapt to many different use cases. The sensor has been developed according to functional safety (ISO 26262:2018 - Road vehicles – Functional safety) and comes in two possible housings. The Pro version supports insulation resistance monitoring and 3 or 6 channels voltage measurement.
Applications
The IVT 3 Series can be used for a wide range of DC applications, like:
- Hybrid and full electric vehicle drives
- Stationary energy storage systems
- Uninterruptable power supply (UPS) systems
- Battery and storage based applications
- Industrial applications

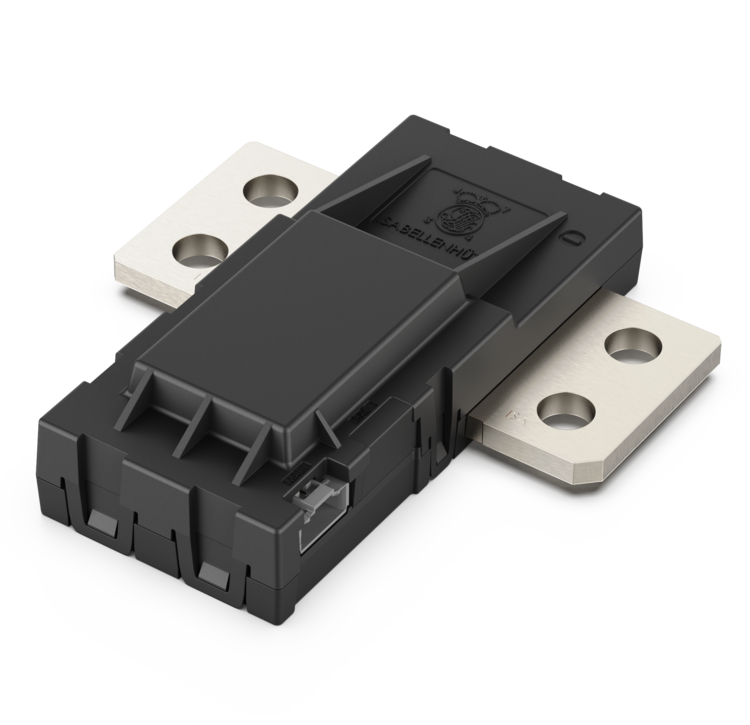

IVT 3 Base
The IVT 3 Base provides a nominal current measurement up to 1000 A with safety classification ASIL C. The accuracy over lifetime is 0.4 % in an operating temperature from -40 °C up to 125 °C. It also includes protection class IP 40, temperature measurement and the possibility of firmware update via OBD.

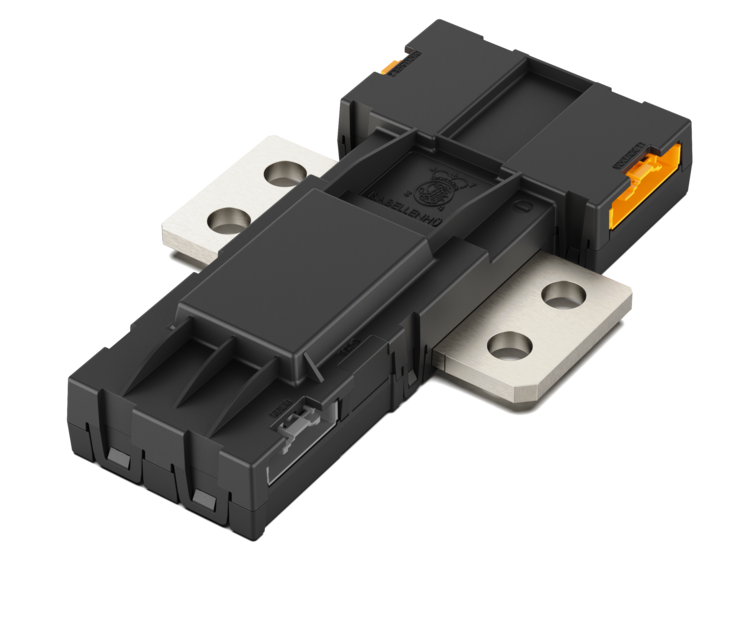

IVT 3 Pro
The IVT 3 Pro offers the full range of hardware. In a slightly larger housing, it includes all properties of IVT 3 Base as well as space for up to six voltage channels and active insulation monitoring. Both each with the safety classification ASIL B. Furthermore the IVT 3 Pro variants run on supply voltage of 12 V or 24 V. Optional software features are the possibility of importing firmware updates via OBD, various CAN protocols and sleep mode.
